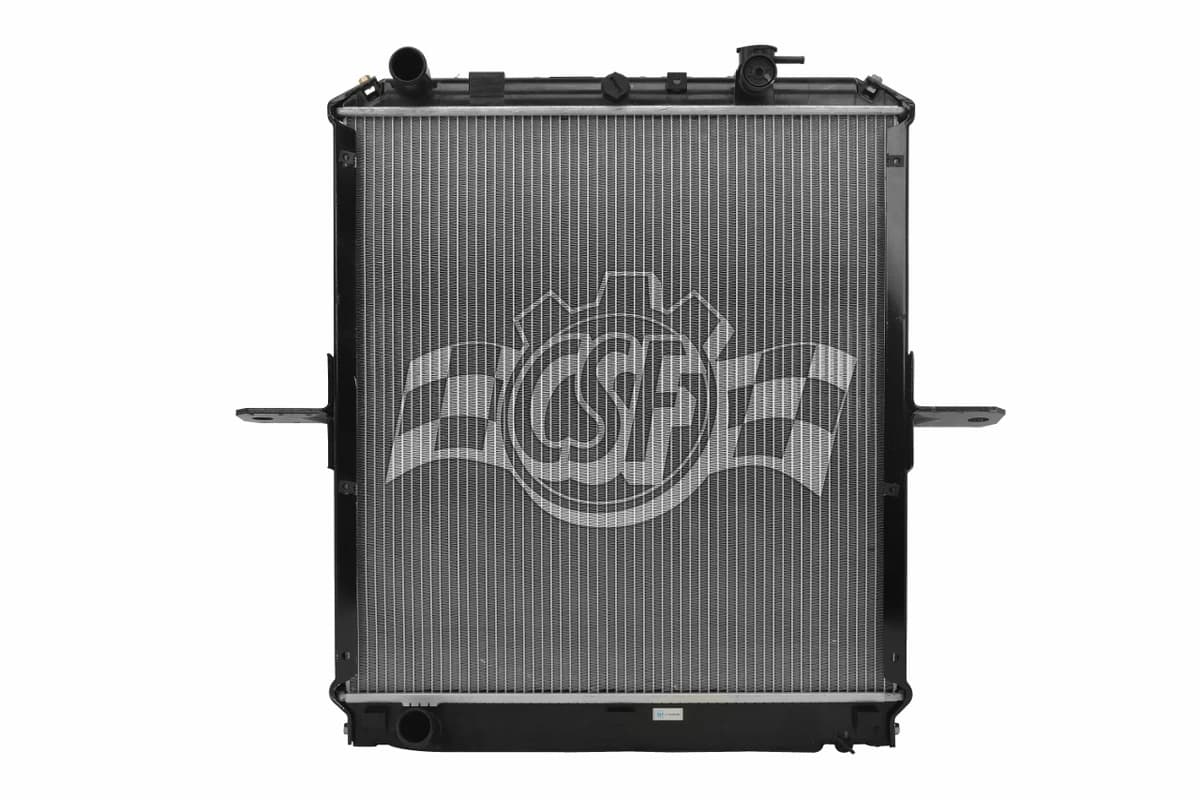

Radiator 2486

Radiator 2486

Isuzu 5800-27

Acme # 2486

Checking price

  • Visa
  • Mastercard
  • American Express
  • Discover
  • Apple Pay
  • Google Pay

Secure checkout byStripe

No payment is taken until we confirm your order.

Questions about fit? 631.581.9199

Key specifications

Core Length (in)
24 7/16 (in)
Core Thickness (in)
1 1/4 (in)
Number of rows
1
Core Material
Aluminum
Show all specifications
Acme part number
2486
Application
Isuzu 5800-27
Department
Heavy duty
Bottom Hose Fitting (in)
1 1/2 Left (in)
Box Height (in)
7 7/16
Box Length (in)
31 5/8
Box Weight (lbs)
24
Box Width (in)
34 15/16
Core Width (in)
23 1/8 (in)
Flow type
Down Flow
Radiator cap part number
4503
Hazardous Material
No
Inlet Length (in)
23 13/16
Inlet Width (in)
1 15/16
Oil Cooler (in)
14 3/8 (high-efficiency Plate Type)
Outlet Length (in)
23 13/16
Outlet Width (in)
1 15/16
Radiator Cap Supplied
No
Tank Material
Plastic
Tech Note
O.E.M. Style Radiator; with sensor port on top tank.
Top Hose Fitting (in)
1 1/2 Left (in)

Fits these vehicles

  • Chevrolet W3500 Tiltmaster

    • 2005 to 20095.2L L4 317ci

  • Chevrolet W4500 Tiltmaster

    • 2005 to 20105.2L L4 317ci

  • Chevrolet W5500 Tiltmaster

    • 2005 to 20105.2L L4 317ci

  • Chevrolet W5500HD Tiltmaster

    • 2005 to 20095.2L L4 317ci

  • GMC W3500 Forward

    • 2005 to 20085.2L L4 317ci

  • GMC W4500 Forward

    • 2005 to 20105.2L L4 317ci

  • GMC W5500 Forward

    • 2005 to 20105.2L L4 317ci

  • GMC W5500HD Forward

    • 2005 to 20095.2L L4 317ci
Show all

  • Isuzu NPR

    • 2005 to 20085.2L L4 317ci

  • Isuzu NPR-HD

    • 2005 to 20105.2L L4 317ci

  • Isuzu NQR

    • 2005 to 20105.2L L4 317ci

  • Isuzu NRR

    • 2005 to 20105.2L L4 317ci

Fit can vary by trim and options. Call us to confirm before ordering.

Questions before you buy

Will this fit my vehicle?

Check the vehicles listed above. Fit can vary by trim and options, so call 631.581.9199 to confirm before ordering. Acme also confirms fit before an online order ships.

What is included?

The specifications list what we know about this part. To confirm whether a cap, fittings or mounting hardware come with it, call 631.581.9199 before ordering.

Can I pick it up, or do you ship?

Pick up at our shop, 49 Carleton Avenue, Islip Terrace, NY: Monday to Friday 8:00 am to 5:00 pm, Saturday 8:00 am to 11:00 am. Shipping options and cost show at checkout once you enter your address. Acme confirms freight before anything ships.

How does payment work?

Place your order online with no card. Acme confirms fit and freight, then sends an invoice or secure payment link before shipping. No payment is taken until then. We accept Visa, MasterCard, Discover and AmEx. We do not accept personal checks.

What about returns and warranty?

Warranties vary by type of service and manufacturer. Call 631.581.9199 for the warranty on this part before you order. For an online order, request a return from your account. Acme reviews every request, so wait for our instructions before sending a part back.

Can Acme repair or recore my original instead?

Often, yes. We have repaired radiators for 75 years. On some later model cars and light trucks a repair can cost more than a new radiator; on medium and heavy duty trucks, repair or recore is usually more cost effective. Ask us for an estimate either way. Call 631.581.9199.

Listed under

  • Since 1950Family owned and operated in the same Islip Terrace building.
  • CertifiedNARSA and MACS certified technicians.
  • Huge inventoryHeavy duty radiators in stock, back on the road fast.
  • Free fleet pickupFree pickup and delivery for fleets.

Application & product details

New ISUZU radiator IS0008-A4CM 5800-27. 238613--437413P LT9217
