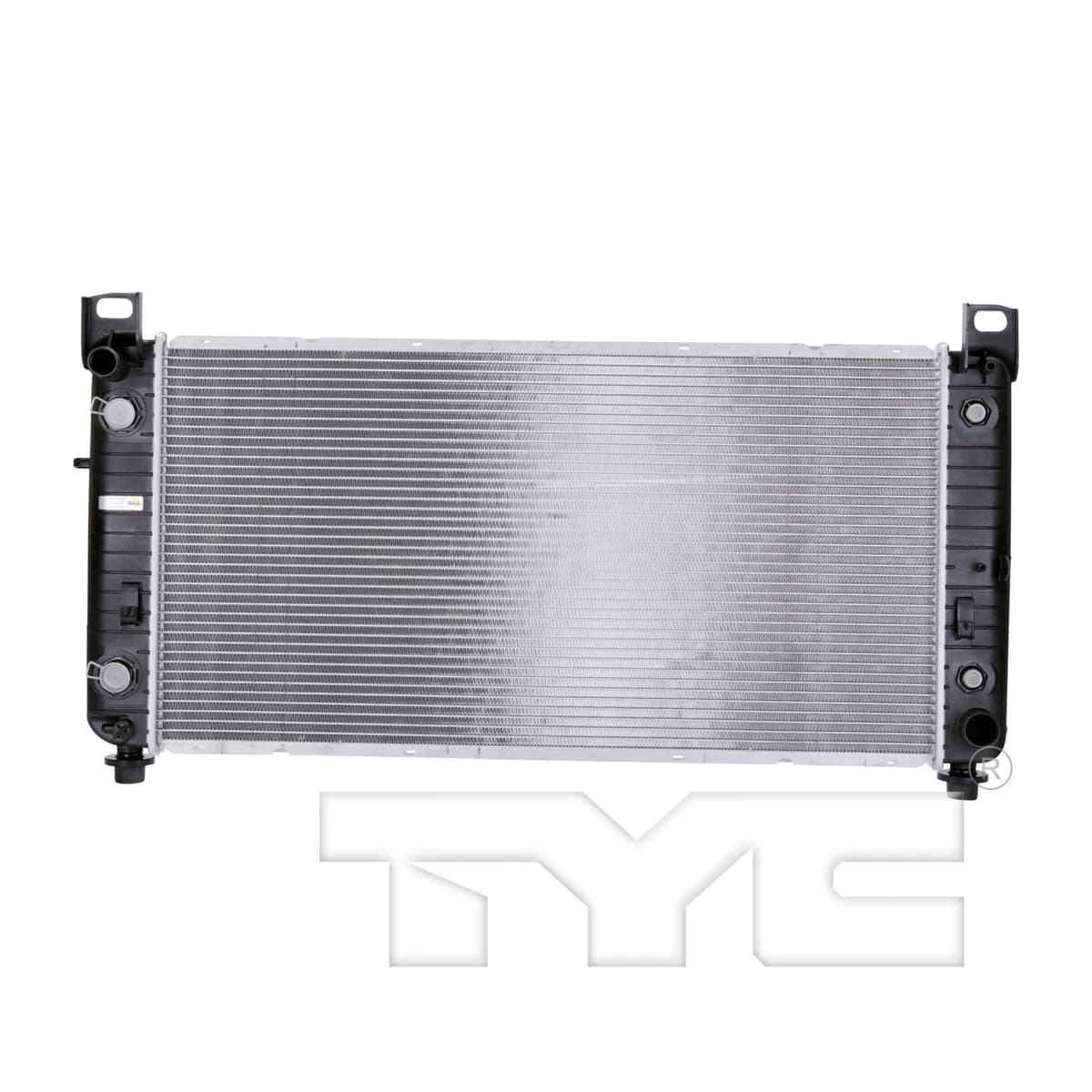

Radiator 2785

Radiator 2785

Acme # 2785

Checking price

  • Visa
  • Mastercard
  • American Express
  • Discover
  • Apple Pay
  • Google Pay

Secure checkout byStripe

No payment is taken until we confirm your order.

Questions about fit? 631.581.9199

Key specifications

Core Height
17.24 in
Core Length
34.02 in
Core Thickness
1.26 in
Core Row Quantity
1
Core Material
Aluminum
Inlet / outlet
1.3 in / 1.57 in
Show all specifications
Acme part number
2785
Department
Passenger vehicles
Bottom Header
3.16x18.5
Flow type
Crossflow
Engine oil cooler inlet diameter (in)
0.37
Engine oil cooler inlet diameter (mm)
9.5
Engine oil cooler inlet type
Quick Connect
Engine oil cooler outlet diameter (in)
0.37
Engine oil cooler outlet type
Quick Connect
Engine Oil Cooler Fittings Distance Apart
11.5
Engine oil cooler
Yes
Engine oil cooler type
Plate Oil Cooler
Fin Count (every 4")
51
Fin Wave Height (in)
0.35
Fin Wave Pitch
4
Inlet Connection Type
Hose Clamp
Outlet Connection Type
Hose Clamp
Transmission cooler inlet diameter (in)
0.5
Transmission cooler inlet type
Quick Connect
Transmission cooler outlet diameter (in)
0.5
Transmission cooler outlet type
Quick Connect
Top Header
3.16x18.5
Total Fin Row Count
40
Total Tube Count
39
Transmission cooler fitting distance
11.5
Transmission cooler
Yes
Transmission cooler type
Plate Oil Cooler
Tube Count (every 4")
10
Tube Width X Height
32x2

Fits these vehicles

  • Cadillac Escalade

    • 2005 to 20066.0L V8 5967cc 364ci

  • Cadillac Escalade EXT

    • 2009 to 20136.2L V8 6162cc 376ci
    • 2005 to 20066.0L V8 5967cc 364ci

  • Chevrolet Avalanche

    • 2009 to 20135.3L V8 5328cc 325ci
    • 2007 to 20096.0L V8 5967cc 364ci

  • Chevrolet Silverado 1500

    • 2007 to 20096.0L V8 5967cc 364ci

  • Chevrolet Suburban 1500

    • 20136.0L V8 5967cc 364ci
    • 2007 to 20085.3L V8 5328cc 325ci
Show all

  • Chevrolet Suburban 1500

    • 2007 to 20096.0L V8 5967cc 364ci

  • Chevrolet Suburban 2500

    • 2007 to 20136.0L V8 5967cc 364ci

  • Chevrolet Tahoe

    • 2008 to 20096.2L V8 6162cc 376ci
    • 2007 to 20094.8L V8 294ci
    • 2007 to 20145.3L V8 5328cc 325ci

  • GMC Sierra 1500

    • 2007 to 20096.0L V8 5967cc 364ci

  • GMC Yukon

    • 2007 to 20094.8L V8 294ci
    • 2007 to 20145.3L V8 5328cc 325ci
    • 2007 to 20146.2L V8 6162cc 376ci
    • 2005 to 20066.0L V8 5967cc 364ci

  • GMC Yukon XL 1500

    • 2007 to 20085.3L V8 5328cc 325ci
    • 2007 to 20096.0L V8 5967cc 364ci

  • GMC Yukon XL 2500

    • 2007 to 20136.0L V8 5967cc 364ci

  • Hummer H2

    • 2008 to 20096.2L V8 6162cc 376ci

Fit can vary by trim and options. Call us to confirm before ordering.

Questions before you buy

Will this fit my vehicle?

Check the vehicles listed above. Fit can vary by trim and options, so call 631.581.9199 to confirm before ordering. Acme also confirms fit before an online order ships.

What is included?

The specifications list what we know about this part. To confirm whether a cap, fittings or mounting hardware come with it, call 631.581.9199 before ordering.

Can I pick it up, or do you ship?

Pick up at our shop, 49 Carleton Avenue, Islip Terrace, NY: Monday to Friday 8:00 am to 5:00 pm, Saturday 8:00 am to 11:00 am. Shipping options and cost show at checkout once you enter your address. Acme confirms freight before anything ships.

How does payment work?

Place your order online with no card. Acme confirms fit and freight, then sends an invoice or secure payment link before shipping. No payment is taken until then. We accept Visa, MasterCard, Discover and AmEx. We do not accept personal checks.

What about returns and warranty?

Warranties vary by type of service and manufacturer. Call 631.581.9199 for the warranty on this part before you order. For an online order, request a return from your account. Acme reviews every request, so wait for our instructions before sending a part back.

Can Acme repair or recore my original instead?

Often, yes. We have repaired radiators for 75 years. On some later model cars and light trucks a repair can cost more than a new radiator; on medium and heavy duty trucks, repair or recore is usually more cost effective. Ask us for an estimate either way. Call 631.581.9199.

Listed under

  • Since 1950Family owned and operated in the same Islip Terrace building.
  • CertifiedNARSA and MACS certified technicians.
  • Huge inventoryHeavy duty radiators in stock, back on the road fast.
  • Free fleet pickupFree pickup and delivery for fleets.

Application & product details

NEW RADIATOR.
